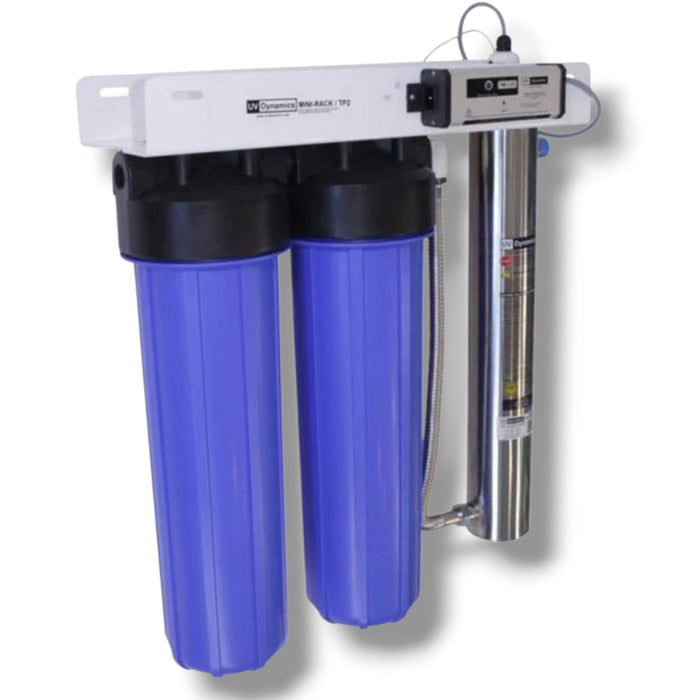

UV Dynamics MR245E-TP2/220 Mini Rack UV Water Purification System – 8 GPM, Dual 20" Filters, Stainless Steel, 120V

UV Dynamics MR245E-TP2/220 Mini Rack UV Water Purification System – 8 GPM, Dual 20" Filters, Stainless Steel, 120V

Key Features:

• Compact mini rack built from rugged 10-gauge steel with a durable powder-coated finish

• 8–16 GPM UV water purification at 30mJ dosage

• Suitable for potable and high-purity water applications

• Polished 304 stainless steel chamber, passivated for corrosion resistance

• UV sensor system reduces false alarms

• 3/4" inlet/outlet ports for simple plumbing connections

• Visual and audible lamp timer with service reminders

• Stainless steel interconnect plumbing for added reliability

• UV lamp lifespan: ~9,000 hours (~1 year)

• Domed quartz sleeve allows easy maintenance

• Tool-free servicing with quick lamp connector

• Includes two 20" Big Blue filter housings (cartridges sold separately)

Specifications:

• System Model: MR245E-TP2/220

• UV Model: UVD245E – 8 GPM at 40 & 30mJ

• Filter Housing: 2 × 20" Big Blue

• Mounting Rack: 10-gauge steel with white powder-coated finish

• Connections:

  • Inlet: 3/4" FIPT

  • Outlet: 3/4" MIPT

• Power Supply: 120V AC

• Assembly: Fully pre-assembled for quick and easy setup

Replacement Parts – MR245E-TP2/220

Includes:

• Stage 1 – Filter: 20" x 4.5" Big Blue Sediment Filter (min. 5 micron) – Part #: K-40530-B

• Stage 2 – Filter: 20" x 4.5" Big Blue Carbon Block Filter (min. 5 micron) – Part #: 32-450-20-MATRIKX

• UV Lamp: Part #: 400150

• Quartz Sleeve: Part #: 400149

• Ballast (Model MF-SLE120): Part #: 400235

• O-Ring Set A: Part #: 400202
