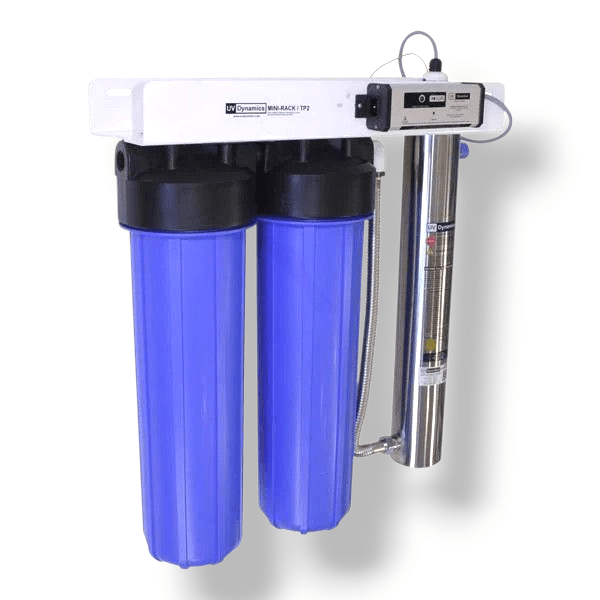

UV Dynamics MR180E-TP2/220 120V UV Water Purification System – Double Big Blue 20" Housing, Whole House UV Disinfection

UV Dynamics MR180E-TP2/220 120V UV Water Purification System – Double Big Blue 20" Housing, Whole House UV Disinfection

• Features:

  • 6 gallons per minute UV water purification at 30–40mJ/cm² dose

  • Provides potable, high-purity water for whole-house and point-of-use applications

  • Polished and passivated 304 stainless steel UV chamber for long-lasting performance

  • Built-in audio/visual lamp monitor and timer for safe operation

  • Domed quartz sleeve design simplifies cleaning and maintenance

  • Quick-connect lamp and easy-service connector – no tools required

  • Stainless steel interconnect plumbing for reliability and durability

  • Heavy-duty reversible wall rack with white powder-coated finish

  • Pre-assembled for fast, simple installation

  • Ideal for residential or light commercial water systems

  ---

  Updated Specifications:

  • System Model: MR180E-TP2/220

  • UV Model: UVD180E – Rated 6 GPM at 30–40mJ/cm²

  • Filter Housings: 2 × 20" Big Blue (20" × 5")

  • Dimensions: Height: 25" | Width: 23" | Depth: 8"

  • Mounting Rack: 10-gauge steel, powder-coated white

  • Connections:

    • Inlet: 3/4" FIPT

    • Outlet: 3/4" MIPT

  • Power Supply: 120V AC

  • Assembly: Fully pre-assembled mini rack system

  • Country of Origin: Made in Canada

  • Manufacturer: UV Dynamics

  ---

  Replacement Parts – MR180E-TP2/220:

  • Stage 1 Filter: 20" × 4.5" Big Blue (5 micron minimum recommended) – Part #: K‑40530‑B

  • Stage 2 Filter: Carbon block or sediment, 5 micron – Part #: 32‑450‑20‑Matrikx

  • UV Lamp/Bulb: Part #: 400434

  • Quartz Sleeve: Part #: 400435

  • Ballast (Power Supply): Model MF-SLE120 – Part #: 400235 (120V)

  • O-Ring Set A: Part #: 400202
