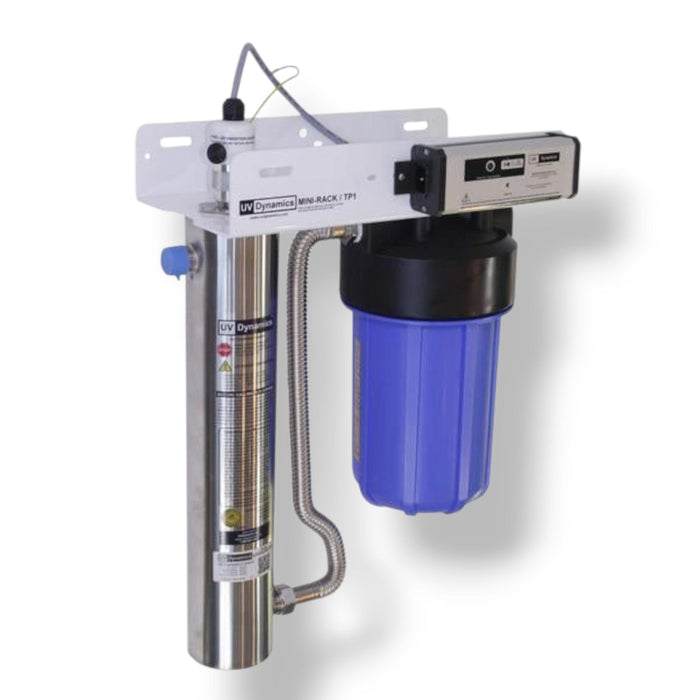

UV Dynamics MR320E-TP1/100 Mini Rack UV Water Purification System – 10 GPM, Stainless Steel, 120V

UV Dynamics MR320E-TP1/100 Mini Rack UV Water Purification System – 10 GPM, Stainless Steel, 120V

Key Features

• Purifies 6–10 GPM at 40mJ/30mJ UV dosage

• Pleated polyester filter 5 Micron 10″×4.5″ 5‑micron
•  K-40515-B

• Ideal for point-of-use potable or high-purity water

• Durable 304 stainless steel chamber, polished and passivated

• 3/4" inlet/outlet connections for easy setup

• Integrated audio/visual lamp timer

• Stainless steel interconnect plumbing

• Reversible rack for flexible installation

• UV lamp lasts up to 9,000 hours (~1 year)

• Auto lamp replacement reminder

• Domed quartz sleeve for easy maintenance

• Tool-free servicing with quick-connect lamp fitting

Technical Specs

• Model: UVD320E – supports 8–10 GPM at 40mJ & 30mJ

• Filter: One 10" Big Blue pre-filter

• Mounting Rack: 10-gauge steel, white powder coat finish

• Connections:

  • Inlet – 3/4" FIPT

  • Outlet – 3/4" MIPT

• Power: 120V AC

• Pre-assembled for easy installation

• Dimensions: 15" W × 8" D × 22" H (vertical)

Replacement Parts

• Filter Cartridge: 10" Big Blue, min. 5-micron K-40515-B

• UV Lamp: Part #400152

• Quartz Sleeve: Part #400151

• Ballast (MF-SLE120): Part #400235

• O-Ring Set A: Part #400202
