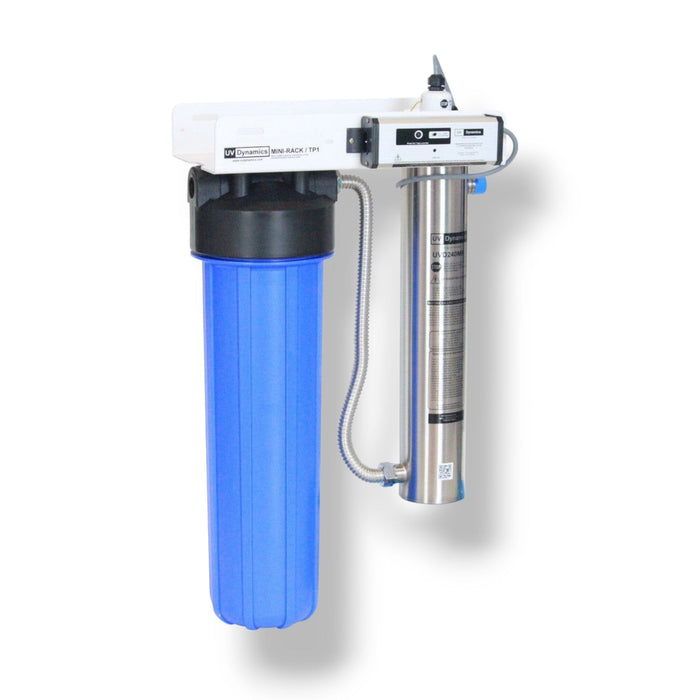

UV Dynamics MR320E-TP1/200 Mini Rack UV Water Purification System – 10 GPM, Stainless Steel, 120V

UV Dynamics MR320E-TP1/200 Mini Rack UV Water Purification System – 10 GPM, Stainless Steel, 120V

Key Features:

• UV water purification at 8–10 GPM, 40mJ & 30mJ dosage

• Pleated polyester filter 5 Micron 20″×4.5″ 5‑micron
•  K-40530-B

• Ideal for potable and high-purity water at point of use

• Durable 304 stainless steel chamber, polished and passivated

• 3/4" inlet/outlet ports for easy installation

• Includes audio/visual UV lamp timer

• Stainless steel plumbing connections

• Space-saving reversible rack design

• UV lamp life: ~9,000 hours (1 year)

• Lamp replacement reminder built in

• Domed quartz sleeve for easy maintenance

• Tool-free servicing with quick-connect lamp design

Specifications:

• System Model: MR320E-TP1/200

• UV Model: UVD320E – 8 to 10 GPM at 40 & 30mJ

• Filter Housing: 1 × 20" Big Blue

• Mounting Rack: 10-gauge steel, white powder-coated

• Connections:

  • Inlet – 3/4" FIPT

  • Outlet – 3/4" MIPT

• Power: 120V AC

• Fully pre-assembled for quick setup

Replacement Parts:

• Filter: 20" x 4.5" Big Blue (min. 5 micron recommended K-40530-B

• Lamp: Part #400152

• Quartz Sleeve: Part #400151

• Ballast (Model MF-SLE120): Part #400235

• O-Ring Set A: Part #400202
