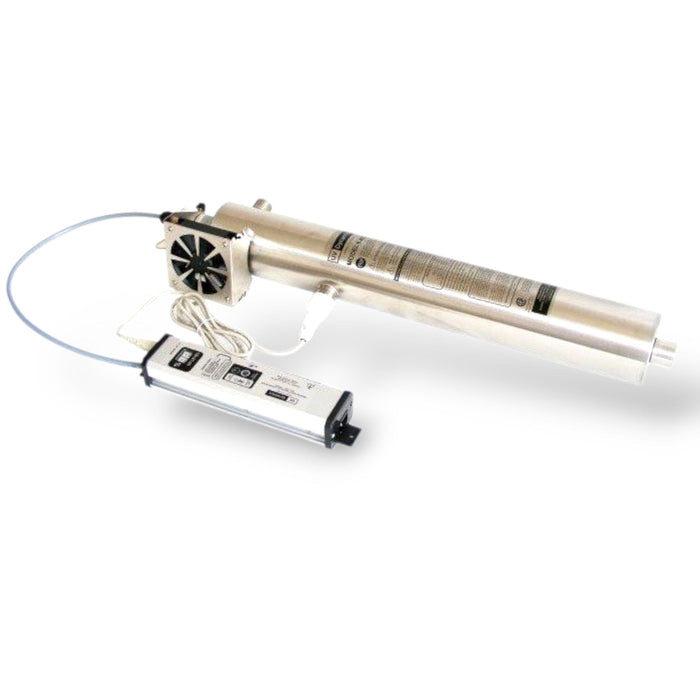

UV Dynamics UVD008.40C0120LL/S UV Water Purification System – 8 GPM, Class A, NSF Certified, 120V

UV Dynamics UVD008.40C0120LL/S UV Water Purification System – 8 GPM, Class A, NSF Certified, 120V

Key Features:

• Certified NSF Class A UV water purification – provides safe disinfection at 8 GPM flow

• Delivers minimum 40mJ UV dose for high-performance microbial control

• Designed for whole-home or point-of-entry potable water treatment

• 304 stainless steel UV reactor – passivated and polished for durability and corrosion resistance

• 3/4″ MNPT inlet and outlet ports for standard plumbing compatibility

• Integrated UV intensity sensor and audio/visual lamp status monitor

• Long-lasting UV lamp rated for ~9,000 hours (about 1 year)

• Electronic ballast with lamp replacement reminder

• Domed quartz sleeve simplifies maintenance

• Tool-free servicing with quick lamp-change connector

• Certified to NSF/ANSI Standard 55 – Class A

Specifications:

• System Model: UVD008.40C0120LL/S

• Flow Rate: 8 GPM at 40mJ UV dose

• UV Reactor Material: 304 stainless steel, polished & passivated

• Inlet/Outlet Connections: 3/4″ MNPT

• Power Supply: 120V AC

• UV Intensity Monitor: Included

• Certifications: NSF/ANSI 55 Class A, CSA

• Mounting: Wall-mount ready

• Country of Origin: Canada

Replacement Parts:

• UV Lamp: Part # 400433

• Quartz Sleeve: Part # 400435

• Ballast (w/ sensor support): Part # 400460

• UV Sensor: Part # 400519

• O-Ring Set A: Part # 400202
