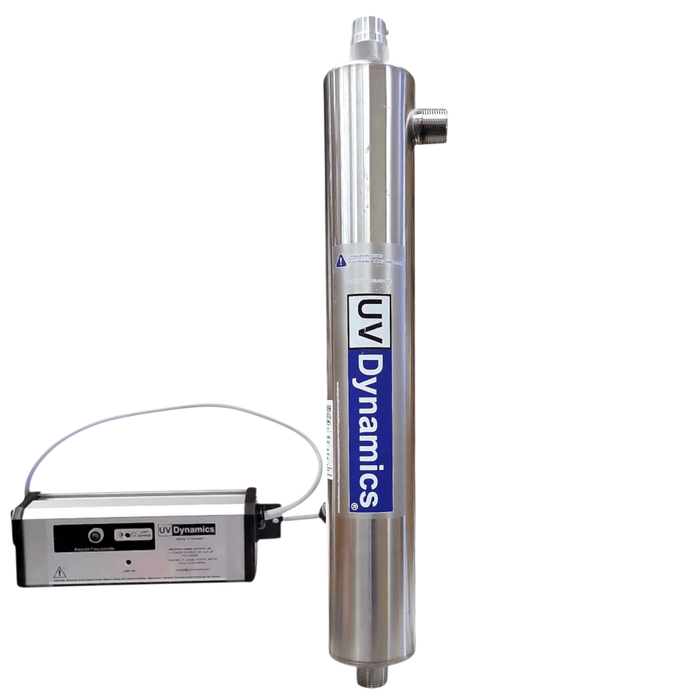

UVD485E UVDynamics 12 to 16gpm UV System

UVD485E UVDynamics 12 to 16gpm UV System

The UVDynamics UVD485 delivers a 30 mJ/cm² UV dose at 16 gpm, ideal for whole-home disinfection. Compact and easy to install, it features a long-life power source with lamp failure alarms, lamp change timer, and built-in solenoid drive. Optional solenoid valves plug in directly.

• 16 gpm @ 30 mJ/cm² | 12 gpm @ 40 mJ/cm²

• 304 stainless steel chamber (3.5” × 24.5”)

• 9000-hour coated UV lamp

• Microprocessor-controlled power source

• Audible/visible lamp failure alarms

• Annual lamp change reminder + lamp life display

• 1” MNPT fittings

• Tool-free servicing with domed quartz sleeve

• Optional solenoid valve & UV monitor system

• Model Number - UVD485, 400379

  Made in Canada

 Replacement Parts:

• • Lamp: 400269

  • Sleeve: 400273

  • Ballast: MF-LL120 (400156)

  • O-ring Kit: 400202
