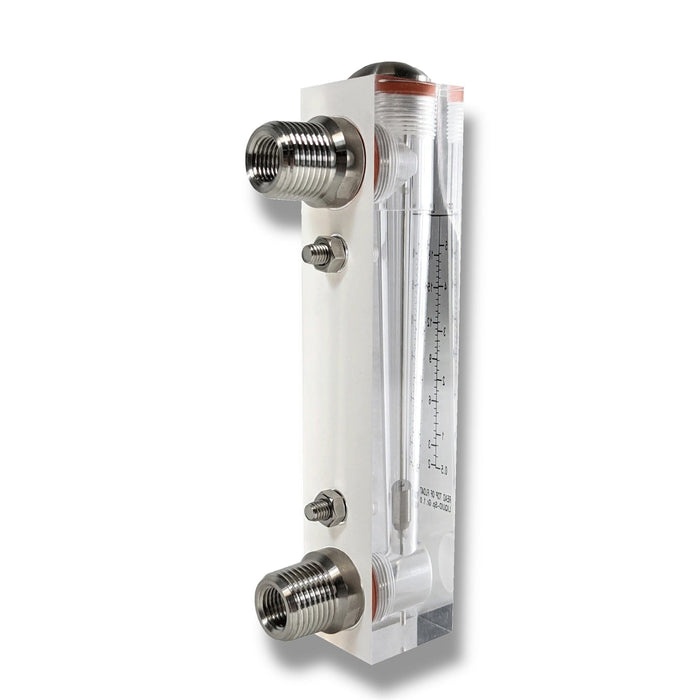

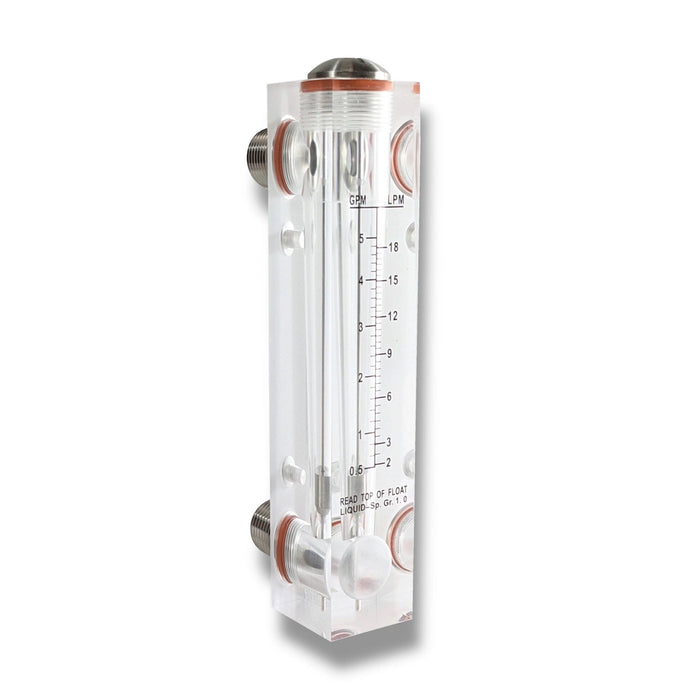

Axeon 204272 Inline Flow Meter 4-40 GPM, 1 1/2" FNPT x 1 1/2"

Axeon 204272 Inline Flow Meter 4-40 GPM, 1 1/2" FNPT x 1 1/2"

Key Features

• Easy-to-read, permanently silk-screened scale on a durable acrylic body

• One-piece, injection-molded acrylic construction

• Stainless steel float and internals for reliable performance

• Dual-scale readings (GPM/LPM or GPH/LPH)

• Built for durability, accuracy, and consistent operation

• Individually packaged and 100% accuracy tested

Specifications

• Flow Range: 1–10 GPM / 5–35 LPM

• Integrated 316L SS Valve: No

• Inner Connection: 1/2″ FNPT

• Outer Connection: 1/2″ MNPT

• Body Material: Acrylic

• O-Rings: Silastic

• Connections: 316L Stainless Steel

• Guide: 316L Stainless Steel

• Float: 316L Stainless Steel

• Maximum Pressure: 125 PSI

• Temperature Rating: 120°F

• Accuracy: ±5%

• AXEON Part Number: 204272
