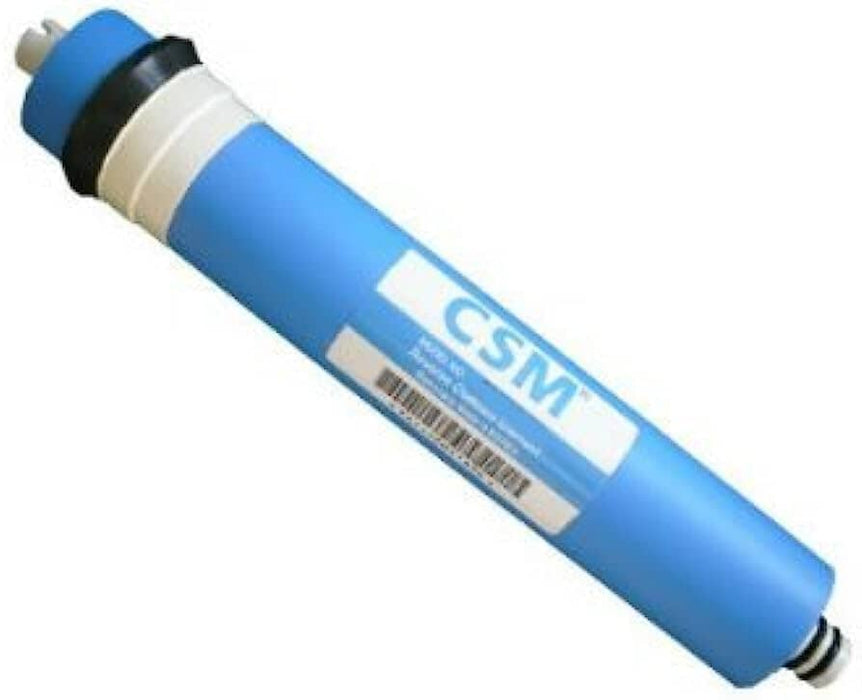

CSM RE2012-LPF Reverse Osmosis Membrane150 GPD at low flow

CSM RE2012-LPF Low Pressure RO Membrane, engineered for high performance even in low-pressure environments. This 2.0" x 12" thin-film composite membrane effectively removes contaminants as small as 0.0001 microns, delivering clean, safe, and great-tasting water.

Key Benefits

• High contaminant removal – Reduces carcinogens, THMs, heavy metal ions, bacteria, viruses, and more.

• Rated Capacity: 150 Gallons Per Day

• Can also perform at Low-pressure performance – Produces 60 GPD at only 20 PSI, perfect for low-pressure tap water applications.

• Versatile compatibility – Fits any standard 2012-size RO membrane housing (18–100+ GPD systems).

• Reliable sodium rejection – Average NaCl rejection rate of 90%.

Performance Specifications

• Rated Capacity: 150 Gallons Per Day

• Model Number: RE2012-LPF

• Membrane Type: Polyamide Thin-Film Composite

• Permeate Flow @ 20 PSI: 60 GPD

• Test Conditions:

  • 250 mg/L NaCl solution

  • 20 PSI (1.37 bar)

  • 77°F (25°C)

  • 15% recovery after 24 hours

  • Note: Individual element flux may vary ±15%

Operating Limits

• Max Temperature: 113°F (45°C)

• Max Operating Pressure: 125 PSI (0.86 MPa)

• Max Feed Flow Rate: 2.0 GPM

• pH Range (Continuous): 2.0 – 11.0

• Max Feed SDI: < 5
