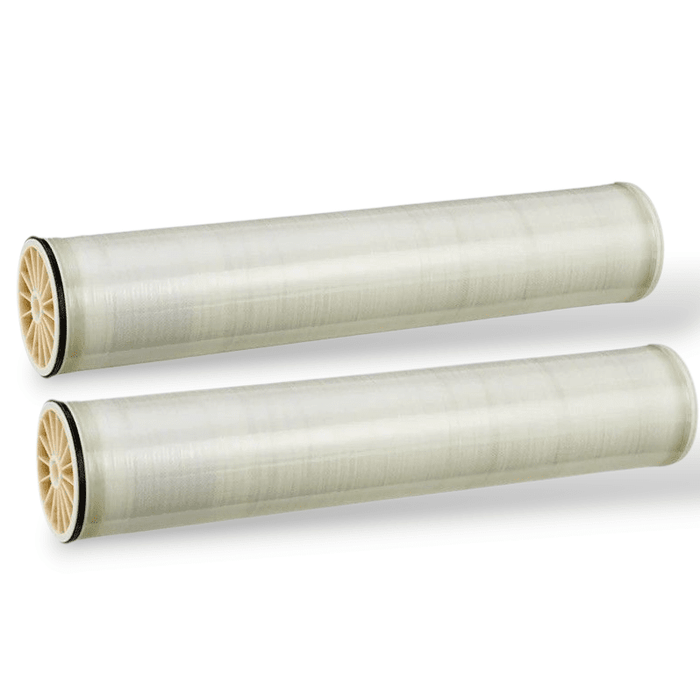

Suez or Veolia AG4040FM 4"X40" 2300GPD Replacement Membrane - Tap/Brackish Water (Veolia)

Suez or Veolia AG4040FM 4"X40" 2400GPD Replacement Membrane - Tap/Brackish Water (Veolia)

• Model: AG4040FM

• Flow Rate: 2,300 GPD

• Active Membrane Area: 85 ft²

• NaCl Rejection:

  • Average: 99.5%

  • Minimum: 99%

• Part Numbers: 3032514, 3032513

Tested with 2,000 mg/L NaCl at 225 psig, 77°F, 15% recovery, pH 7.5 (after 24 hrs). Flux may vary ±25%.

Operating & Design Parameters

• Membrane Type: Thin Film (TFM®)

• Typical Pressure: 200 psi

• Max Pressure: 450 psi

• Max Temperature: 122°F

• Chlorine Tolerance: 1,000 ppm-hours (dechlorination recommended)

• pH Ranges:

  • Rejection: 7.0–7.5

  • Operation: 4.0–11.0

  • Cleaning: 2.0–11.5

• Max Pressure Drop:

  • 10 psi per element

  • 50 psi per vessel

• Feedwater Limits:

  • NTU < 1

  • SDI < 3

• Typical Flux: 10–20 GFD (15–35 L/m²/h)
