3 Way Ball Valve for 3/8" Polypropylene O.D tubing. SMC part# 6393690
Part number: 6393690

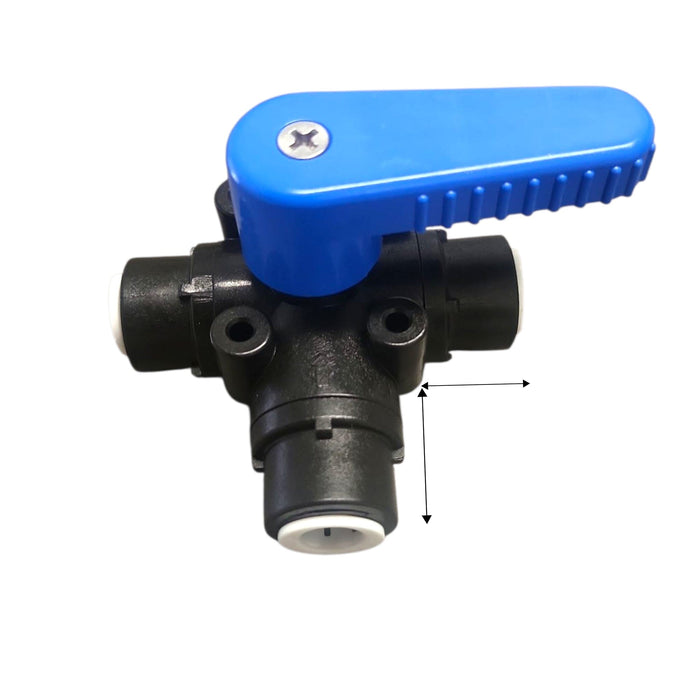

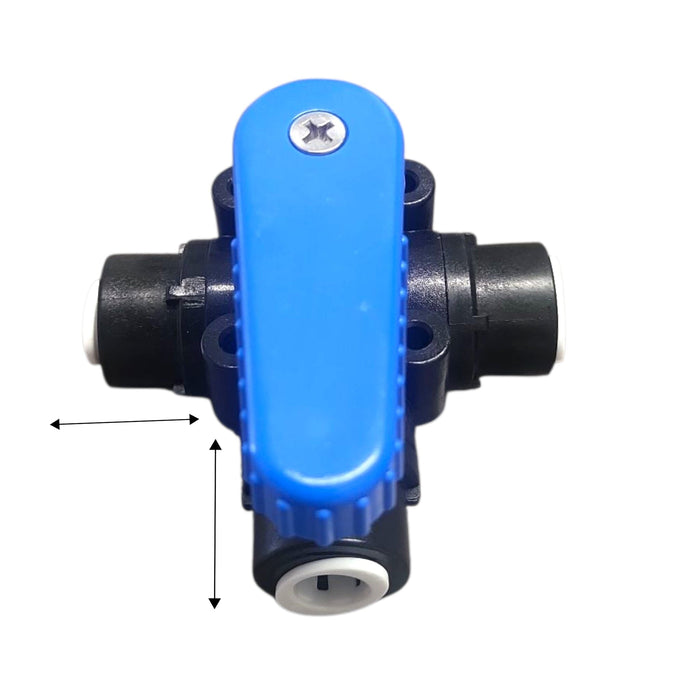

639 Series 3-Way Ball Valve – Panel Mount (follow- flow arrows in the pictures )
Compact diverter valve with 90° handle rotation for directing flow between ports. Designed for easy panel mounting and operation under pressure.
Features:
-
Polypropylene body with ball valve
-
Seal options: Viton™, Buna-N, or EPDM
-
90° rotating handle, 4 orientation options
-
Max pressure: 125 psi | Max temp: 140°F
-
Panel mount hole: 0.750" | Max thickness: 0.170"
-
0.375" through-hole in the ball
-
Two screw boss mounting points (screws not included)
- 3/8" Outer diameter for 3/8" O.D. poly tubing
