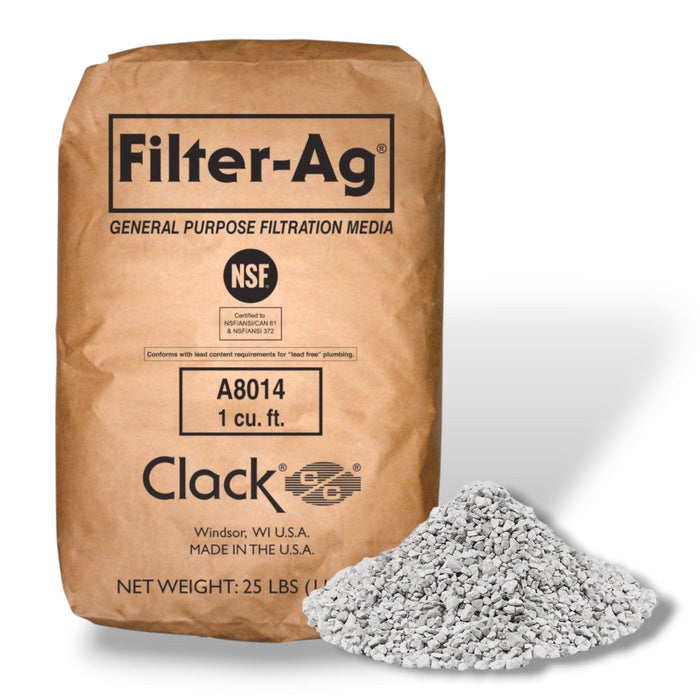

Filter-Ag® Media – Economical Sediment & Turbidity Reduction

(A8014) 1 Cubic Feet : 25 Lbs

Product Overview
Filter-Ag® is a lightweight, cost-effective filtration media designed for the reduction of sediment, dirt, and turbidity in residential, commercial, and industrial water systems. Its highly fractured edges and irregular surfaces provide a large surface area and complex flow path, efficiently removing suspended particles down to the 20–40 micron range.

The larger particle size reduces pressure loss, increases sediment holding capacity, and extends filter run cycles. Its lightweight design allows for lower backwash flow rates and improved bed expansion for effective cleaning.

Key Benefits

• Reduces sediment and turbidity down to 20–40 microns

• Low pressure loss for improved flow rates

• Lightweight media = economical shipping & handling

• Lower backwash flow rates for cost savings

• Can be used in pressure or gravity flow systems

• Works as a standalone media or in multi-media filter designs

• Certified: ANSI/NSF 61

• Operating Conditions / Requirements

  Parameter	Specification
  Service Flow Rate	5 GPM/ft²
  Flow Direction	Downflow
  Typical Pressure Drop	< 1 psi
  Backwash Flow Rate	8–10 GPM/ft²
  Typical Freeboard	50%
  Backwash Bed Expansion	20–40%
  Minimum Bed Depth	24 inches
  Recommended Bed Depth	30–36 inches
  Maximum Feed Temperature	140°F
  Recommended pH Range	6.5–8.5
  Media Weight	25 lbs/ft³
