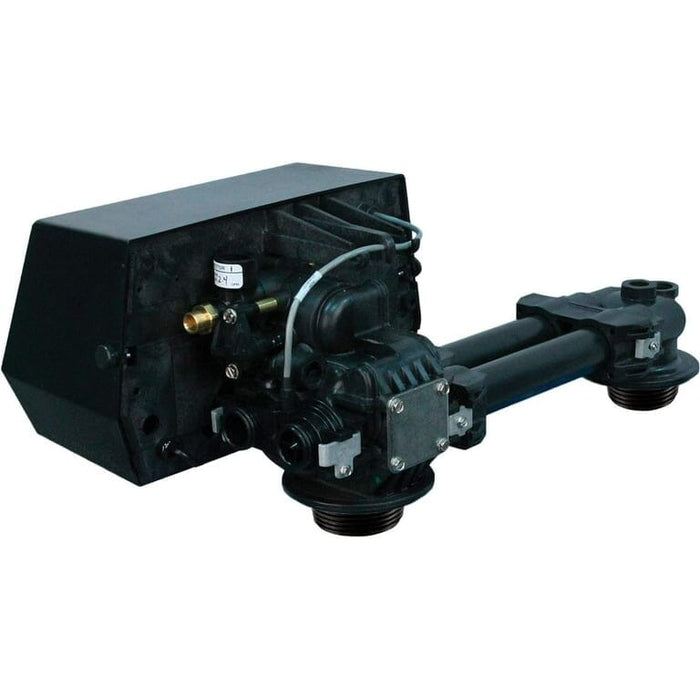

Fleck 9100 SXT On Demand Water Softener Valve and Manifold Only 910006-004

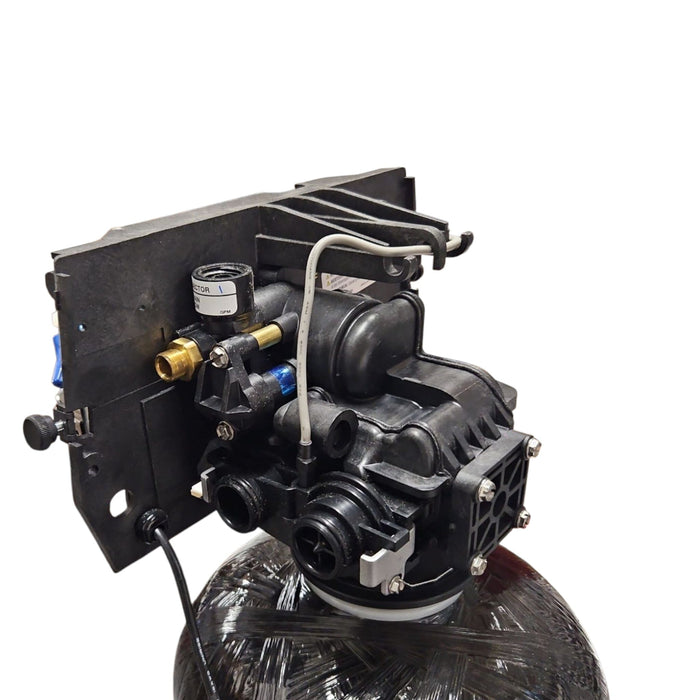

Fleck 9100SXT Twin-Tank Control Valve

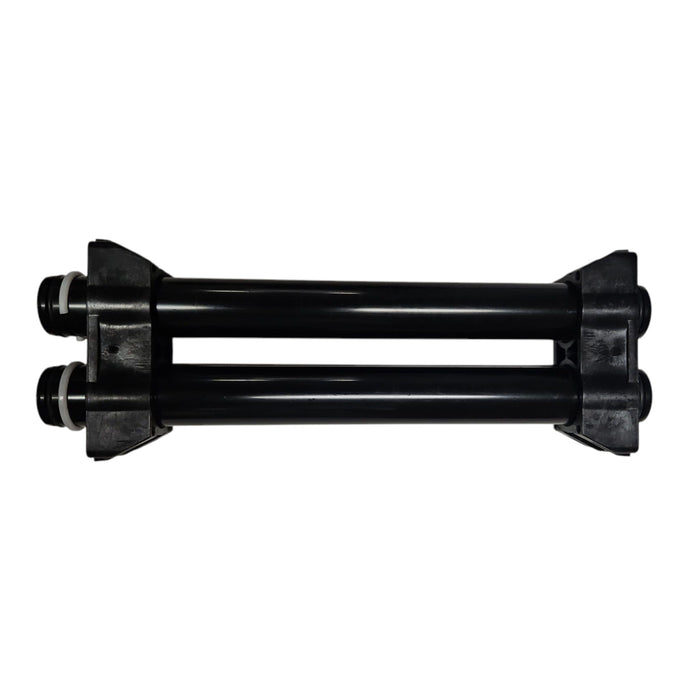

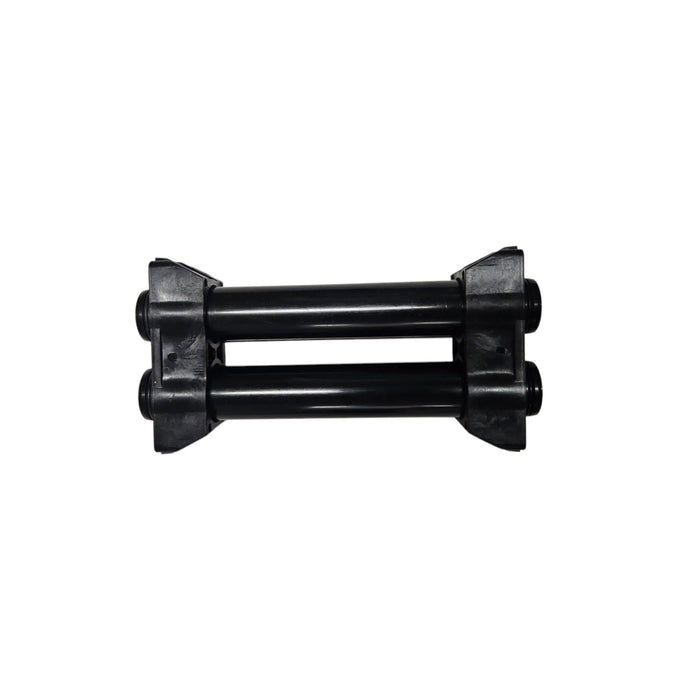

 ( Ordering Options :  12" or 16" Tube Assembly )

The Fleck 9100SXT is a high-performance twin-tank control valve designed for light commercial and heavy residential water softening systems. Built with a durable, corrosion-resistant, fiber-reinforced polymer body, it delivers continuous soft water with smart regeneration and minimal maintenance.

Key Benefits:

• Maximizes salt and water savings by using full tank capacity before switching

• Immediate regeneration for uninterrupted soft water (as often as every 90 minutes)

• Regenerates with soft water to keep the system clean and efficient

• Easy installation with quick-connect design

• Proven Fleck reliability and twin-tank performance

Specifications:

• Specifications (Compact):

  • Inlet/Outlet: 3/4", 1", or 1-1/4"

  • Electrical: 24V, 110V, 220V (50/60 Hz)

  • Power Source: 120V to 24V US Transformer

  • Drain Line / Brine Line: 1/2" NPT

  • Mounting Base: 2-1/2" – 8 NPSM

  • Height from Tank: 7.3"

  • Injector / Brine Valve: #1600, Brass 0.25 GPM

  • DLFC: Retainer Only (no button)

  • Meter: 3/4" Turbine Assembly

  • Cover: Designer One-Piece

  • 2nd Tank Adapter: included : Choose 12" inches or 6" extensions

  • Suggested Tank Size: 9"–10" diameter
