Tomlinson Contemporary Hot/Cold Faucet Polished Chrome - 1022118

Features

• Smooth-operating ceramic disc element ensures reliable, long-lasting performance

• Ergonomic lever-style handle allows easy and precise control

• High-reach neck design (12" / 305 mm) provides added clearance

• 360° swivel neck offers maximum flexibility and convenience

• Protective spout tip helps prevent after-drip

• Approximate spout reach: 5" (127 mm)

• Pressure rating: 125 PSI (8.6 BAR)

• Temperature range: 40°F (4°C) to 190°F (88°C)

• Flow rate varies depending on the instant hot water dispenser used

• Pre-installed 1/4" OD x 30" tubing simplifies installation

• Includes all required installation hardware and instructions

• Backed by a two-year limited warranty

• Model: 600CBRHC

Certifications & Compliance

• Certified to NSF/ANSI Standard 61 – Annex G (low-lead compliant)

• Meets California Health & Safety Code Section 116875 (AB1953)

• Compliant with U.S. EPA Safe Drinking Water Act revisions (effective January 4, 2014)

• ADA compliant (ANSI A117.1)

Compatible Hot Water Dispensers

• Waste King® (Anaheim Mfg.)

• Everpure® Everhot (EV931840)

• Franke® Little Butler Heating Tank (HT200)

• Everpure® Commercial Grade Instant Hot (CGHE1)

• Little Gourmet®

• KitchenAid® (Whirlpool®)

• Mountain Plumbing (MT641)

• Quick & Hot® Waterstone #5000 Hot Tank

• Solaria™ Instant Hot Water Dispenser (EV9318-40)

Important Note

• Not compatible with InSinkErator® products

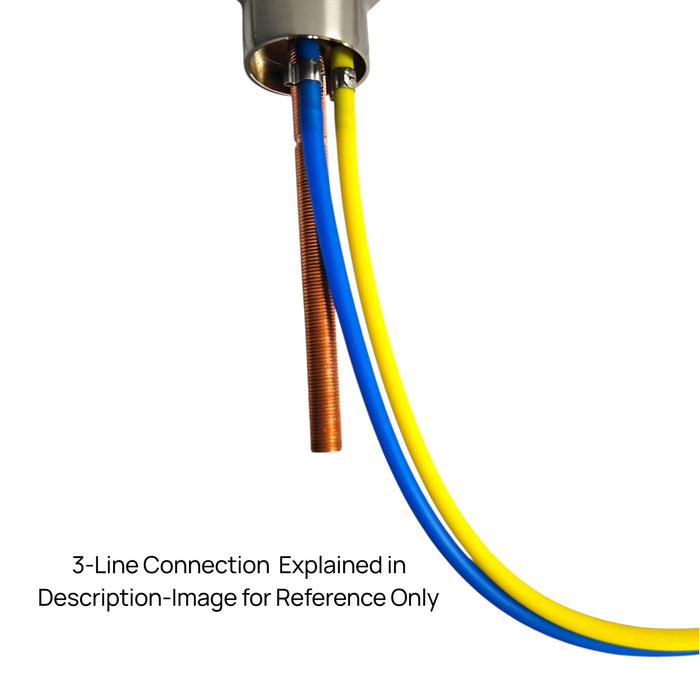

3-Line Connection Explained

• 🔵 Cold Water (Blue Line): Connects to your RO system and delivers purified cold drinking water

• 🟡 Hot Tank Feed (Yellow Line): Sends purified water into the hot tank for heating

• 🧵 Hot Water Return (Center Threaded Stem): Connects to the hot tank outlet and delivers heated water back to the faucet
